Analog Output 4-20mA/0-5VDC Wiring w/ Digital Indicator

[DOWNLOAD PDF]

The following wiring diagrams illustrate 4-20mA, 0-20mA, 0-5V and 1-5V analog output wiring for scales equipped with the MKE-5 Digital Indicator or the Arlyn UpScale Touchscreen Indicator.

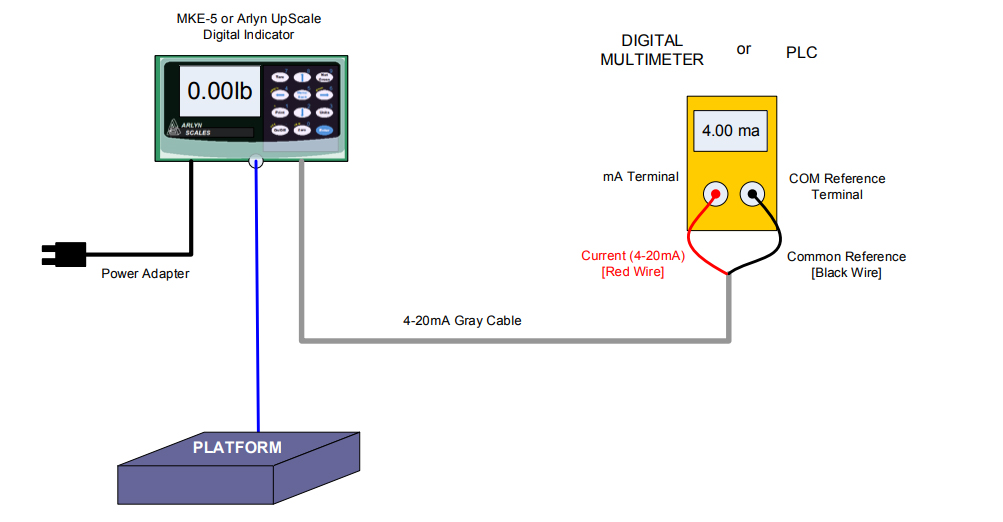

Scale Indicator Analog Output 4-20mA Wiring

This diagram shows how to wire the 4-20mA into an Ammeter or PLC

Analog Output 4-20mA with Digital Indicator

The 0-20mA module is NOT Loop Powered. The Digital Indicator power supply provides power to the internal 0-20mA converter to produce the 0-20mA Signal.

Do not attempt to supply any voltage on the 0-20mA cable.

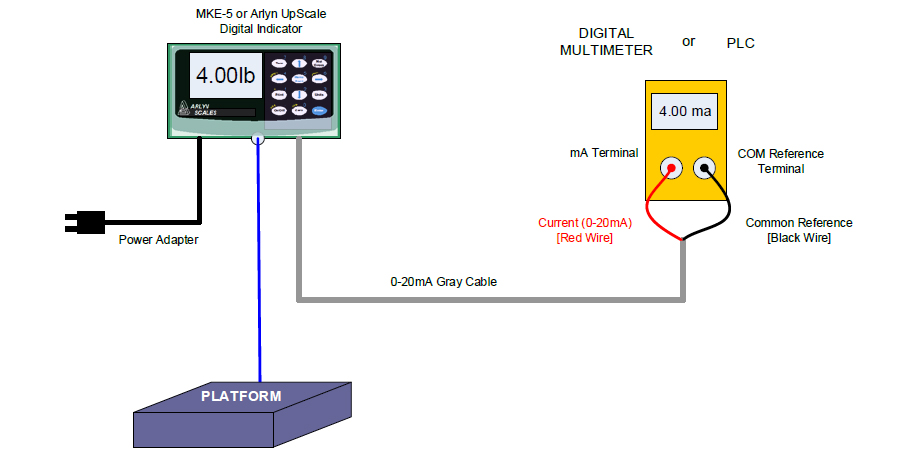

Scale Indicator Analog Output 0-20mA Wiring

This diagram shows how to wire the 0-20mA into an Ammeter or PLC

Analog Output 0-20mA with Digital Indicator

The 0-20mA module is NOT Loop Powered. The Digital Indicator power supply provides power to the internal 0-20mA converter to produce the 0-20mA Signal

Do not attempt to supply any voltage on the 0-20mA cable.

Scale Indicator Analog Output 1-5V Wiring

This diagram shows how to wire the 1-5V into a Voltmeter or PLC

Analog Output 1-5V with Digital Indicator

Do not attempt to supply any power into the 1-5V output cable.

Scale Indicator Analog Output 0-5V Wiring

This diagram shows how to wire the 0-5V into a Voltmeter or PLC

Analog Output 0-5V with Digital Indicator

Do not attempt to supply any power into the voltage output cable.
