Remote Key Button with Digital Indicator

[DOWNLOAD PDF]

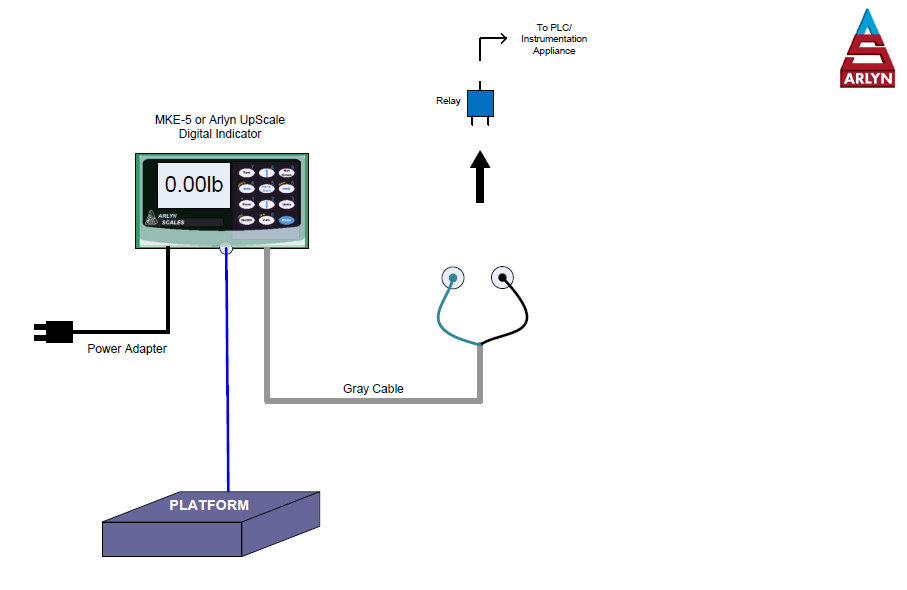

Diagram below demonstrates how to wire Remote Key Button available with scales equipped with Digital Display Indicator.

Connect the two wires to:

  • Mechanical push button for manual control, or
  • Coil relay/PLC for automatic trigger.

Touch (or short) the two wires together to trigger “button press”.


Remote (External) Buttons can be wired out of the Digital Indicator for external triggers. The wires can be touched (or shorted) together momentarily to create a button press.

Remote Buttons can be dedicated for ZERO, TARE, PRINT or CYCLE.

PROPRIETARY
ARLYN SCALES, 59 2ndSTREET, EAST ROCKAWAY, NY 11518
TITLE
REMOTE BUTTON WIRING FOR ARLYN DISPLAY INDICATORS
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CIRCUITS AND SYSTEMS, INC. DBA ARLYN SCALES. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CIRCUITS AND SYSTEMS, INC. DBA ARLYN SCALES IS PROHIBITED. DATE
10/22/2020		 REVISED
10/22/2020		 VERSION
1.00		 DRAWN
MMK		 PAGE
1 OF 1
