Cylinder Scales For Cylinders, Pails and Tanks

Starting at $649
Configure and Buy

Overview

Low profile, rugged, accurate and low cost. A perfect combination for cylinder scales used for liquefied gases, cylinders, pails, drums and tanks. Used in the semiconductor and chemical industries. See more product details
Product Code Capacity & Resolution Comes with... Price
620G-4-60/100 (60 or 100) x 0.02 lb 4-20mA $649
620G-4-300 300 x 0.1 lb 4-20mA $649
620G-4-400 400 x 0.1 lb 4-20mA $749
620G-5-60/100 (60 or 100) x 0.02 lb 0-5 VDC $649
620G-5-300 300 x 0.1 lb 0-5 VDC $649
620G-5-400 400 x 0.1 lb 0-5 VDC $749
620G-I-60/100 (60 or 100) x 0.02 lb MKE-5 Indicator $749
620G-I-300 300 x 0.1 lb MKE-5 Indicator $749
620G-I-400 400 x 0.1 lb MKE-5 Indicator $849
620G-4-I-60/100 (60 or 100) x 0.02 lb 4-20mA and MKE-5 Indicator $849
620G-4-I-300 300 x 0.1 lb 4-20mA and MKE-5 Indicator $849
620G-4-I-400 400 lb x 0.1 lb 4-20mA and MKE-5 Indicator $949
620G-4-60-SS 60 x 0.02 lb/ Stainless 4-20mA $849
620G-4-100-SS 100 x 0.02 lb  / Stainless 4-20mA $849
620G-4-300-SS 300 lb x 0.1 lb  / Stainless 4-20mA $849
620G-5-60-SS 60 x 0.02 lb / Stainless 0-5 VDC $849
620G-5-100-SS 100 x 0.02 lb  / Stainless 0-5 VDC $849
620G-5-300-SS 300 x 0.1 lb  / Stainless 0-5 VDC $849
620G-I-60-SS 60 x 0.02 lb / Stainless MKE-5 Indicator $949
620G-I-100-SS 100 x 0.02 lb  / Stainless MKE-5 Indicator $949
620G-I-300-SS 300 x 0.1 lb  / Stainless MKE-5 Indicator $949
620G-4-I-60-SS 60 x 0.02 lb / Stainless 4-20mA and MKE-5 Indicator $1049
620G-4-I-100-SS 100 x 0.02 lb / Stainless 4-20mA and MKE-5 Indicator $1049
620G-4-I-300-SS 300 x 0.1 lb / Stainless 4-20mA and MKE-5 Indicator $1049

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

Liquefied gas cylinders are used in numerous industrial processes. The semiconductor industry is one typical application. Monitoring the pressure in the cylinder is not an effective way to determine the amount of contents because the pressure will stay near maximum until just before the last of the gas is used. Monitoring the weight is the most effective way to determine the amount remaining. Arlyn’s Cylinder Scales are specifically designed for this purpose with industry standard capacities of 60 lb and 300 lbs. All our Cylinder Scale models use a special stainless steel load cell to provide a very thin platform with a size of 9.25” x 9.25”. A platform measuring 14”x 14” (Standard Aluminum only) is also available for our Liquid Tank scales. Weight can be read on a digital indicator, or output using 4-20mA, 0-5V, 1-5V or any combination.

Very Thin Profile

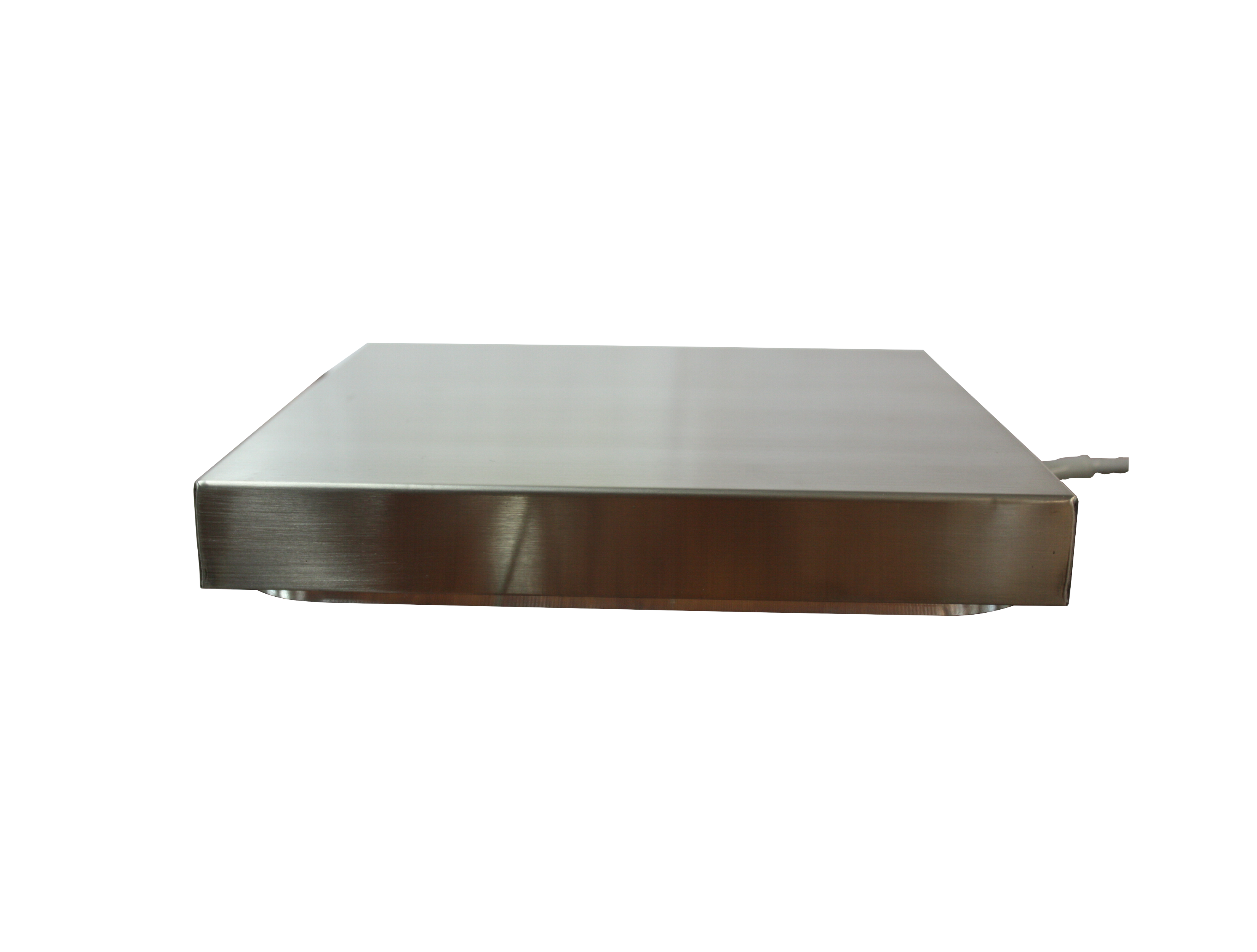

Loading and unloading heavy cylinders can be a difficult process. We have engineered our scales to ensure a low profile and to make this process easier. Our Cylinder Scale’s profile is only 1 3/8” high!

Construction

Our Cylinder Scales are also available in All Stainless Construction (including pan, frame, load cells and legs). The scale can be upgraded to 12" x 12" or 14" x 14" platform. Other sizes as small as 4" x 4" also available. For custom sizes, please call our factory.

Very Versatile

Available with different outputs, including 4-20mA, 0-5V, 1-5V or with a full functioned indicator that can be enhanced by a variety of computer output formats, including RS-232, Wi-Fi, Ethernet and USB

High Precision

Weights can be read as closely as 0.02 lb. For even better accuracy, see Arlyn’s Ultra Precision Scales.

AxChange Cloud Monitoring

Monitor and Track your industrial scales on the cloud, anywhere on any device using the new AxChange Cloud Monitoring and Weight Tracking system. Limited free beta accounts available.

Intrinsically Safe Versions Available

For hazardous or classified environments, see Arlyn's Intrinsically Safe ArlynGuard C Series Cylinder Scales equipped with FM Approved display indicator and load cell sensors.

Other Configurations

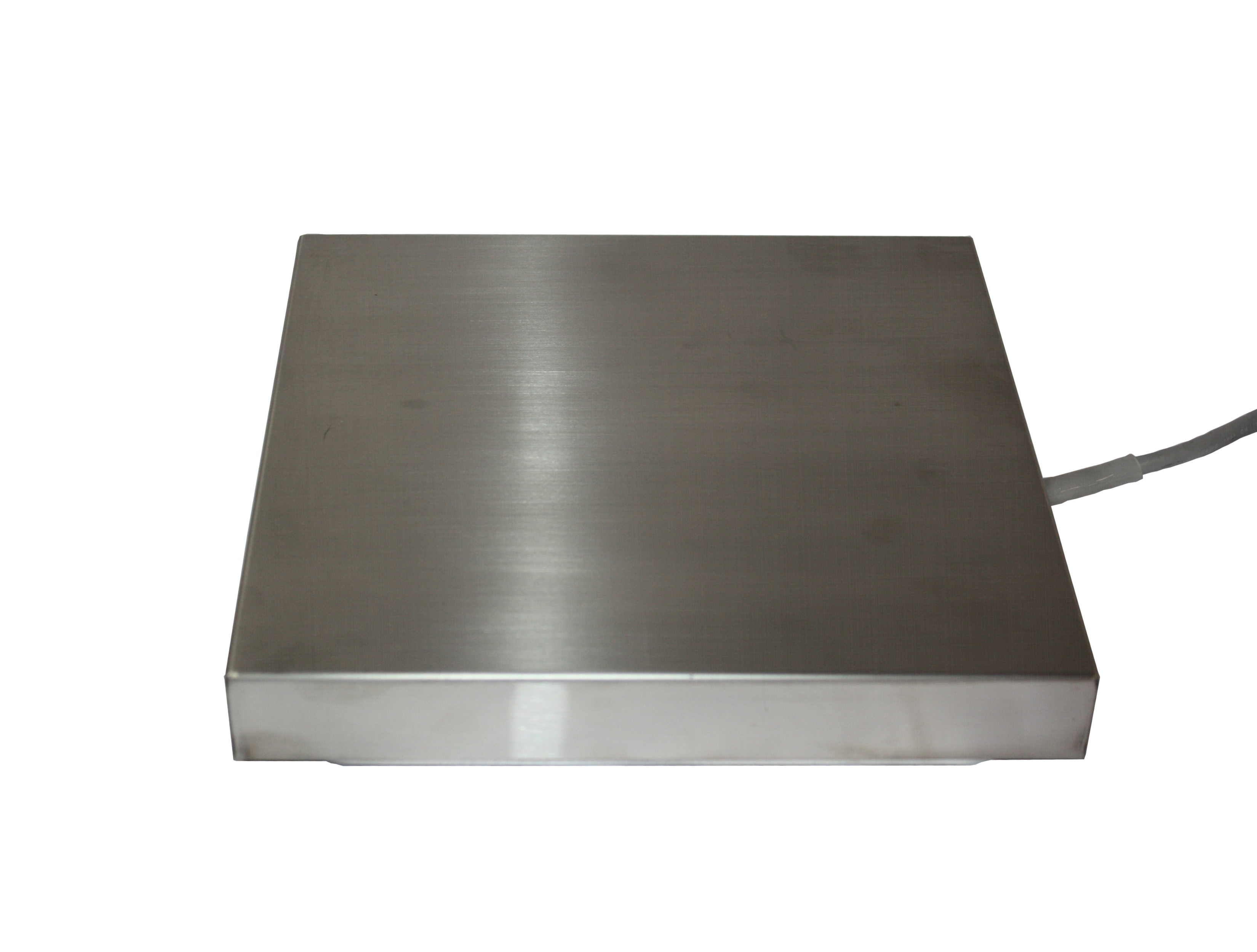

  • 2-Wire or 3-Wire 4-20mA (no display): These scales can also be configured for applications that do not require a Digital Display Indicator. This is suitable if your application requires this scale with a 2- or 3-wire 4-20mA or 0-5V interface without a display. Use the "Configure & Buy" option above to select your interface.
  • Load Cell Kits (without platform): We also provide load cell kits with capacities as stated for these types of scales. The kits include the heavy duty stainless steel load cells, legs, and other hardware. The kit can also include the scale display if requested.
For these and other configurations, please contact us or call us at (800) 645-4301 and we will be happy to help.

Available Upgrades

Display
Type          Upgrade to All Stainless Steel Construction (Aluminum Frame Standard)
Platform         9.25" x 9.25" Standard. Upgrade to 12" x 12" or 14" x 14"
  • Also available 12" x 12", 4" x 4", etc.
Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
Industrial Interfaces (UpScale Display Only)
  • MODBUS RTU/ASCII
  • MODBUS TCP
  • EtherNet/IP
  • PROFINET
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24V Power

Specifications

Brochure & Datasheet 620G Series Cylinder Scales - Specification Sheet (PDF)
Primary Output Types 4-20mA or 0-5 VDC and/or Digital Indicator

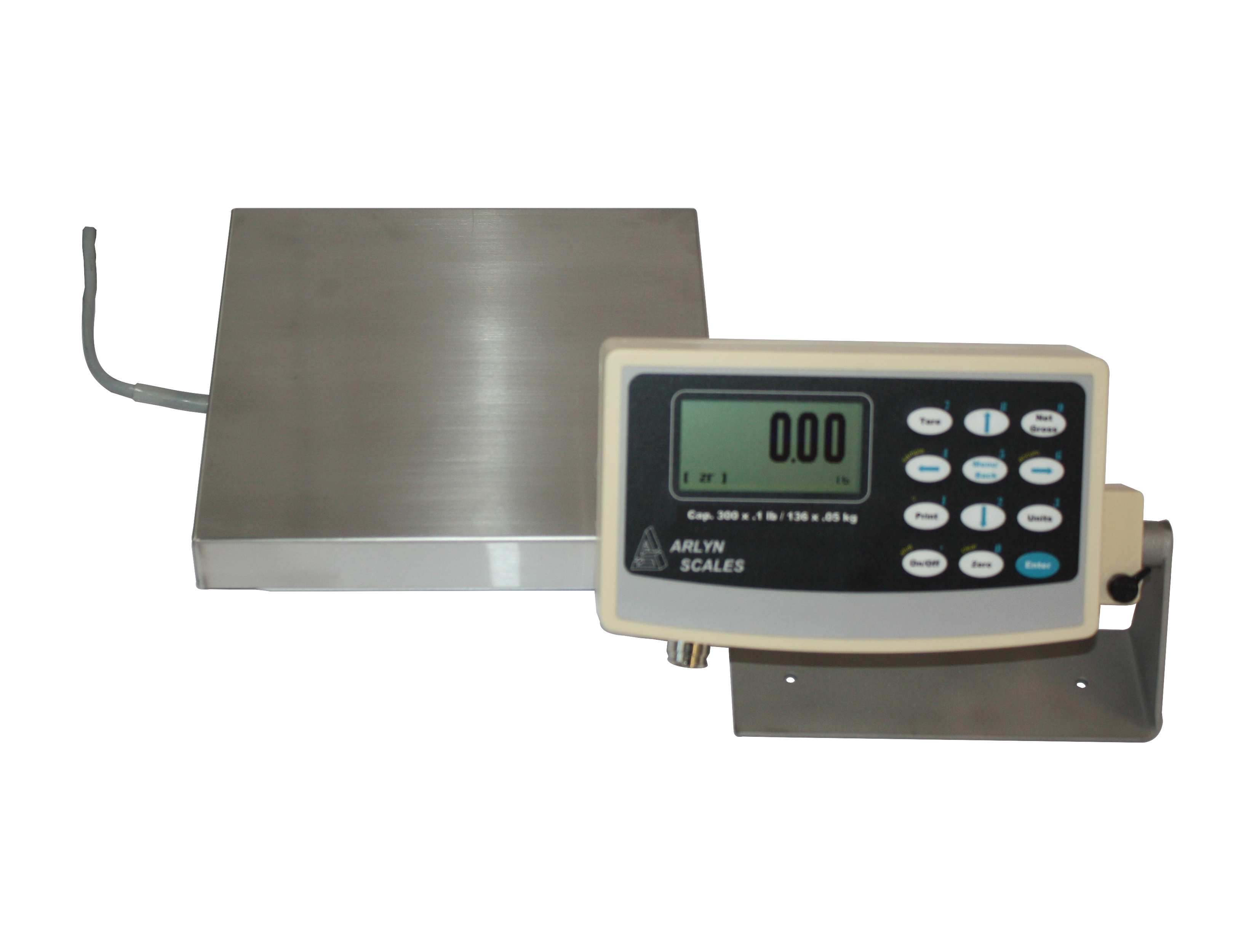

MKE-5 Digital Indicator 1" High Graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable.

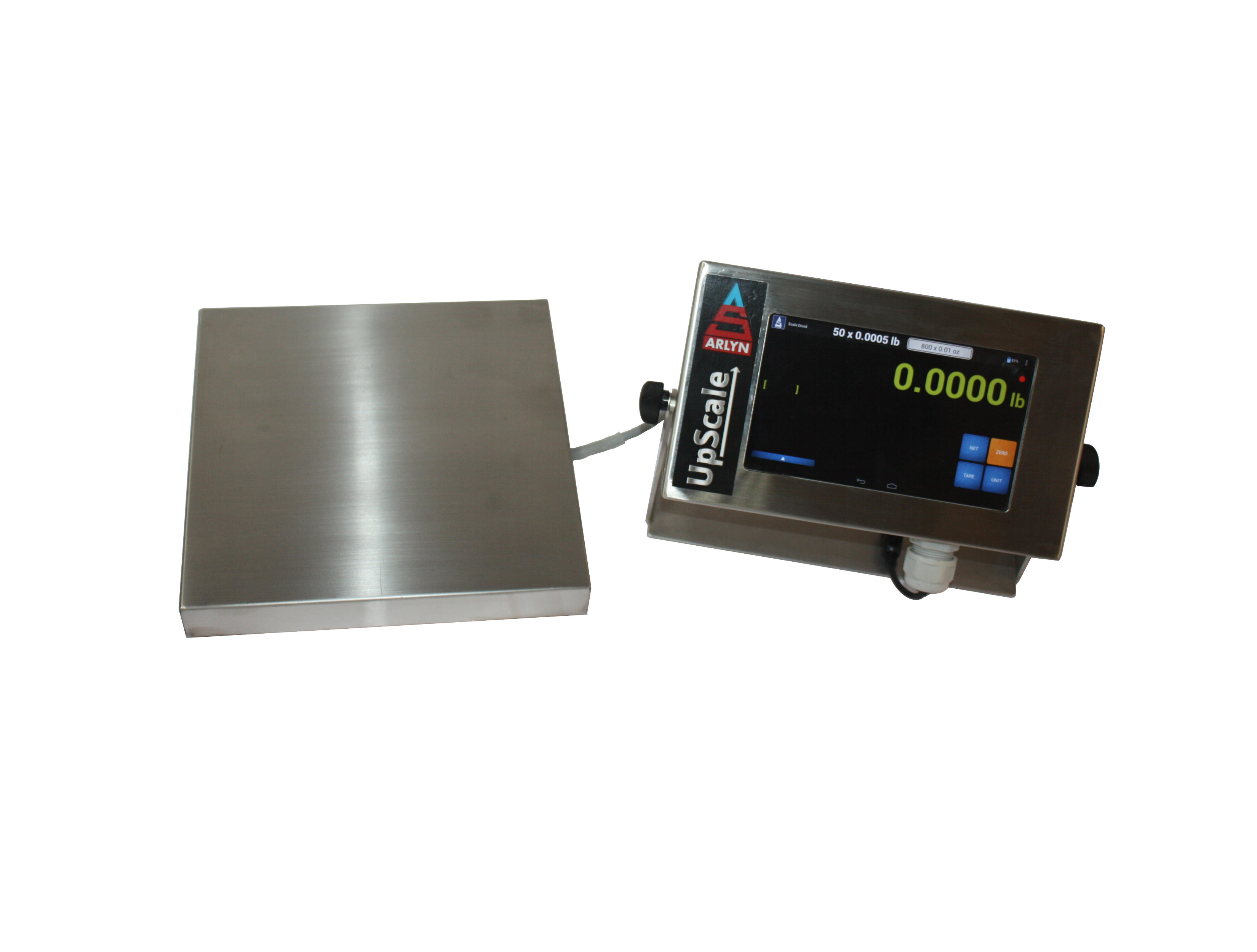

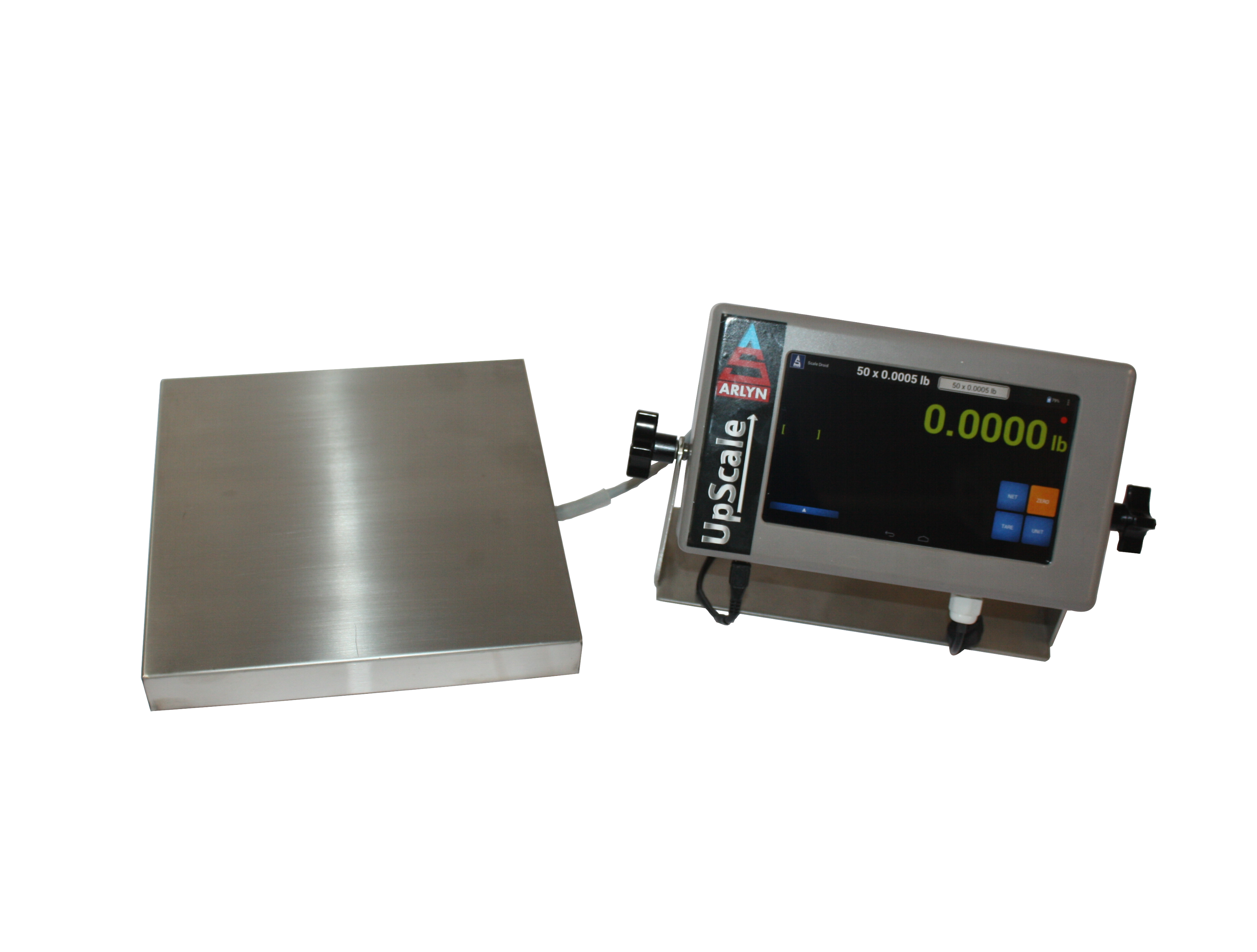

UPSCALE-9 Indicator Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable.
Pan Material Stainless Steel
Load Cell Material Stainless Steel
Supports Material Aluminum (All Stainless Construction Available)
Maximum Safe Load 150% of Capacity
Platform Size 9.25" x 9.25" x 1 3/8" high, 15lbs shipping
Power Requirements 12-30VDC [4-20mA models only] 117 VAC, 50/60 Hz [all Digital Indicator models]
Accuracy & Repeatability ± 0.1% of Full Scale @ 20°C ± 0.25% of Full Scale above operating temperature range
Zero Balance 4mA ± 0.2% [4-20mA models only]
Zero Shift ± 0.1mA / 30 Days [4-20mA models only] ± 0.625% Full Scale / 30 days [All Digital Indicator Models]
Operating Temperature 14°F to 104°F
Pig Tail Lead 4 conductor, jacketed and sheilded
Relative Humidity 0-95% Non-Condensing
Environmental Water Resistant (Not Submersible)
Test Spec EMI/RFI Emission Suppression
Minimum Sampling Rate 10 Hz
