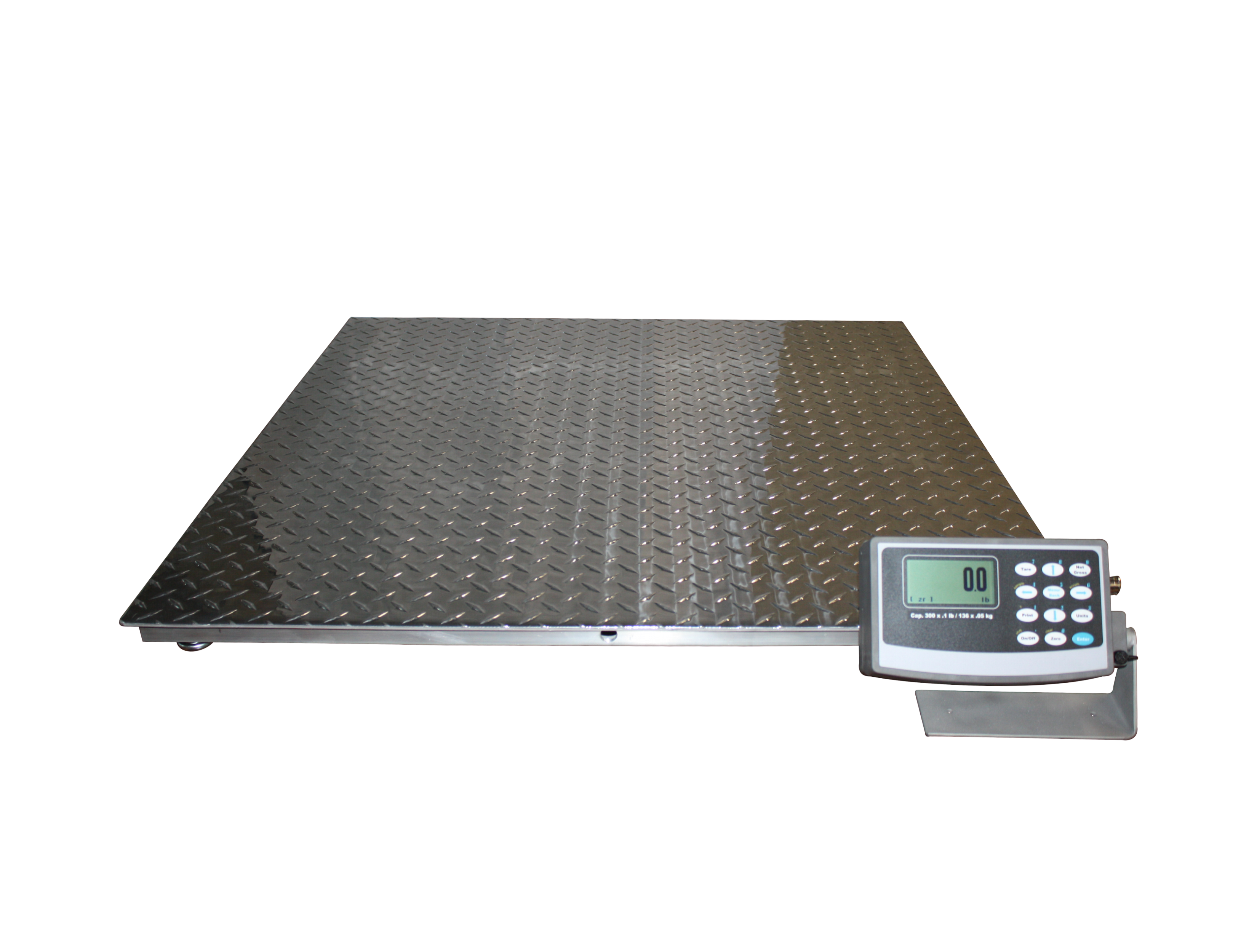

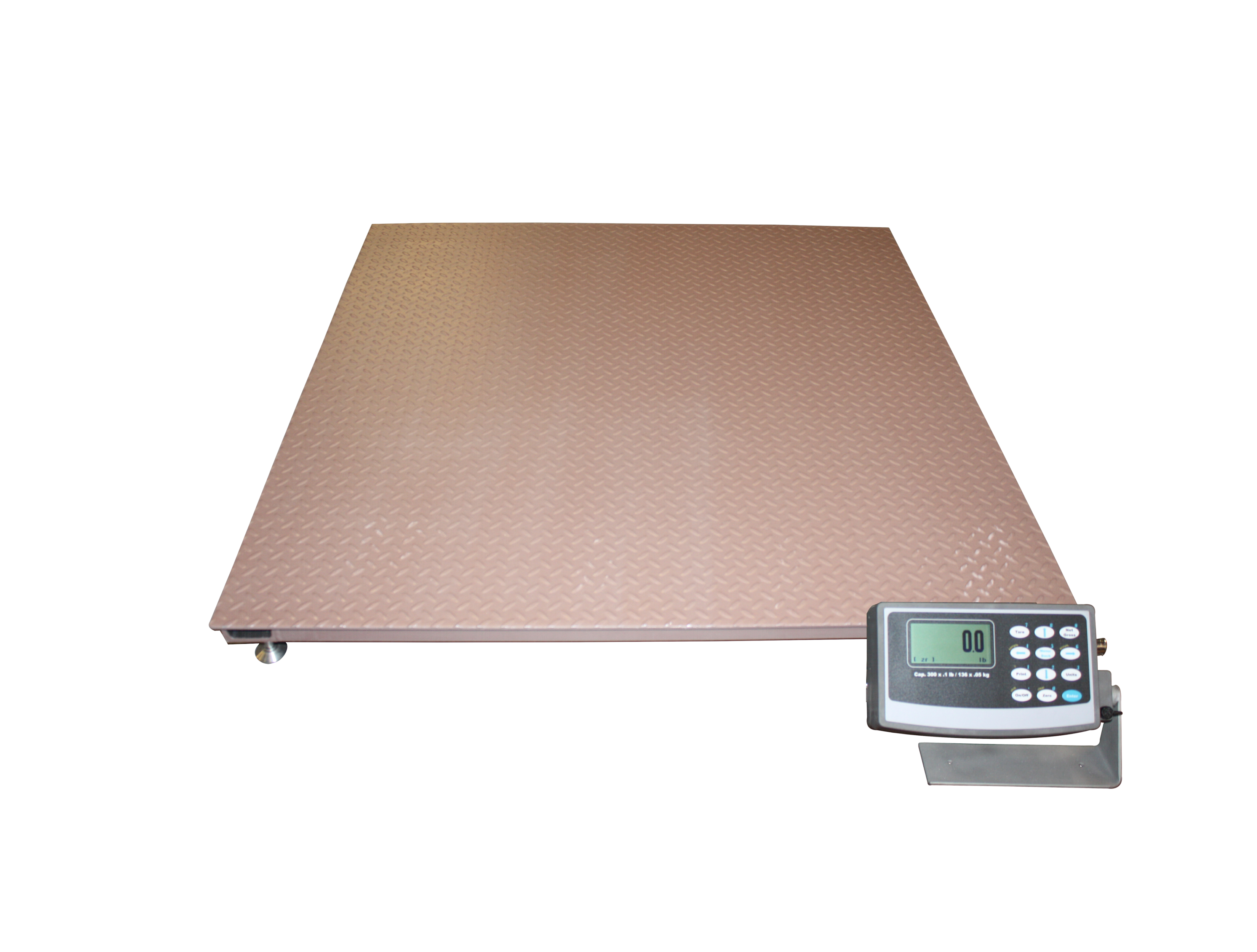

F200 ArlynGuard Intrinsically Safe Floor Scales

Starting at $3799
Configure and Buy

Overview

Many industrial environments are considered to be hazardous, due to flammable or explosive fumes or liquids, or high concentrations of dust. Arlyn's Intrinsically Safe Floor Scales are appropriate for most of these environments. See more product details
Product Code Capacity & Resolution Platform Size Price
F 200 20,000 lbs x 5 lbs 6' x 8' $3799

***ALL OTHER SIZES AND CAPACITIES ARE AVAILABLE***

***CALL THE FACTORY FOR PRICING AND DELIVERY***

Details

Many industrial environments prohibit the use of standard equipment, due to explosive, flammable or other hazardous conditions. Many of these situations require equipment that is Intrinsically Safe for use in Explosive Environments. The ArlynGuard F is Intrinsically Safe for use in many hazardous area classes, divisions and groups.

Intrinsically Safe

Class I, II, III, Division 1, Groups A, B, C, D, E, F & G Class I, Zone 0, AEx ia IIC (T3 Ta=60C) Indoor Hazardous (Classified) Locations. Nonincendive for use in Class I, Division 2, Groups A, B, C and D Suitable for use in Class II, Division 2, Groups F & G, Class III, Division 2 indoor Hazardous (Classified) Locations.

High Precision

Capacities range up to 20,000 lb, and even higher. Sensitivity is available as high as 0.5 lb. The internal resolution of the scale is 1 part of 500,000.

Abuse Resistant and Robust

Heavy duty industrial grade load cells are machined from heat treated stainless steel, as opposed to aluminum or regular steel. The load cells are bolted into protection pockets within the frame. A special 3 part epoxy coating provides excellent resistance to scratching and rusting.

Easy to Use

The large graphical LCD digital display is provided with a stainless steel swivel mount. Front panel functions are used for automatic and keyboard tare with more than 100 memory locations, net /gross, zero, and multiple units conversion (lb, kg, oz, troy, etc.) display mode indicators.

Many Alternate Sizes Available

The load cells are fabricated from special heat treated stainless steel alloy. Platforms are constructed from welded steel or optional stainless steel. Many other sizes are also available from the factory.

Approvals

All ArlynGuard scales are equipped with one or more of:
  • Model MKE-5-IS(-C) Digital Weight Indicator System
  • Load Cell Models 620-300-IS, 620-100-IS, 620-50-IS, 620-25-IS, 620-10-IS, 520-10000L-IS, 520-5000L-IS, 520-5000IS, 520-2500-IS, 520-1250-IS, 320-500-IS and 320-250-IS
which are Factory Mutual (FM) Approved components as per Approval Standard 3600, 3610, 3611 and 3810.

Available Upgrades

  • Ramp: 3'x 3' Ramp for easy loading and unloading. [Add $150]. Call for custom sizes.
  • Counting: Parts counting functionality [Add $50]
  • Infra Red: Infra Red Communication Interface with Analog Output, RS232 [Add $499]

Specifications

Tare, Zero Range 100 % of full scale
Display Speed Adjustable from 0.1 to 0.5 seconds
Overall Indicator Dimensions 8W x 4.8W x 2.5D(inch)
Power Requirements Digital Weight Indicator uses one supplied 3800mah NiMH C cell battery (available only from Arlyn Scales), two spare batteries provided with re-charger. Batteries must be changed and recharged in a safe area.
Accuracy 0.1% of full scale.
Display 1" high graphics LCD digits.
Approvals This ArlynGuard scale is equipped with one or more of:
  • Model MKE-5-IS(-C) Digital Weight Indicator System
  • Load Cell Models 620-300-IS, 620-100-IS, 620-50-IS, 620-25-IS, 620-10-IS, 520-10000L-IS, 520-5000L-IS, 520-5000IS, 520-2500-IS, 520-1250-IS, 320-500-IS and 320-250-IS
which are Factory Mutual (FM) Approved components as per Approval Standard 3600, 3610, 3611 and 3810.
Minimum Sampling Rate 10 Hz
